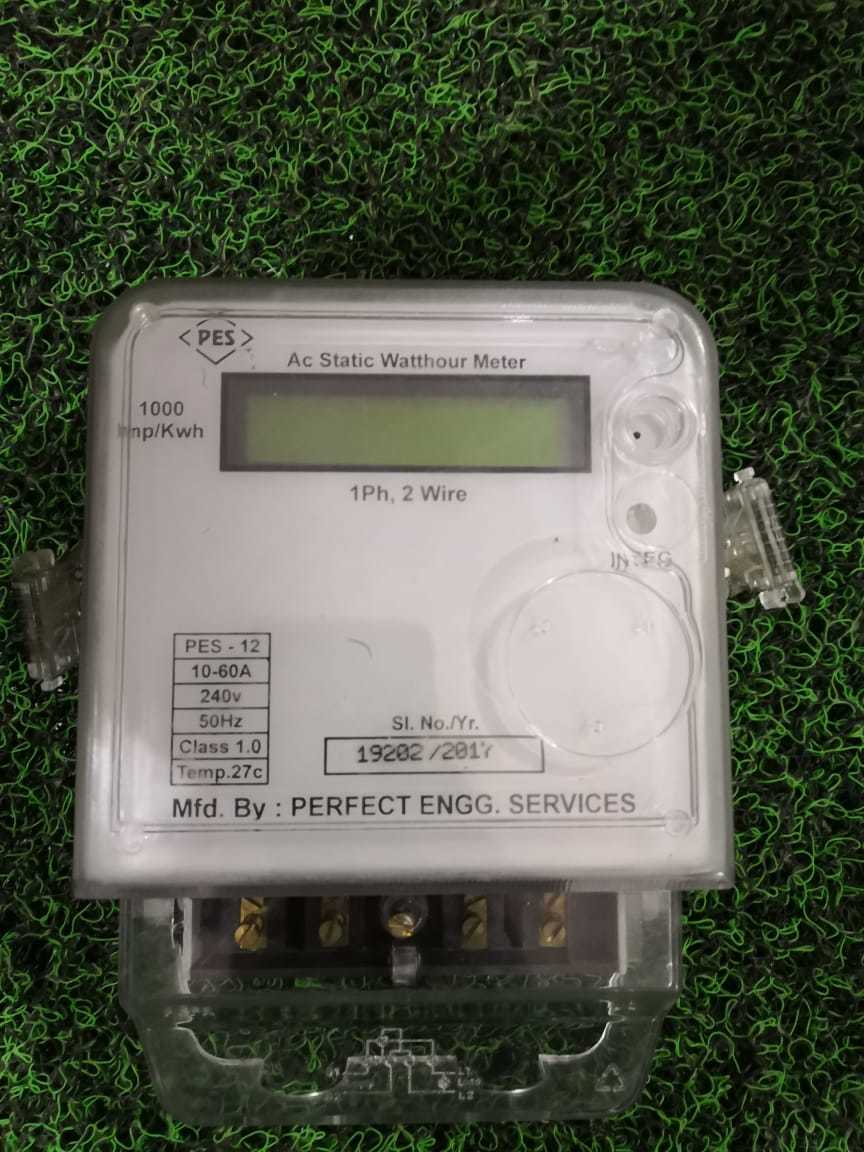

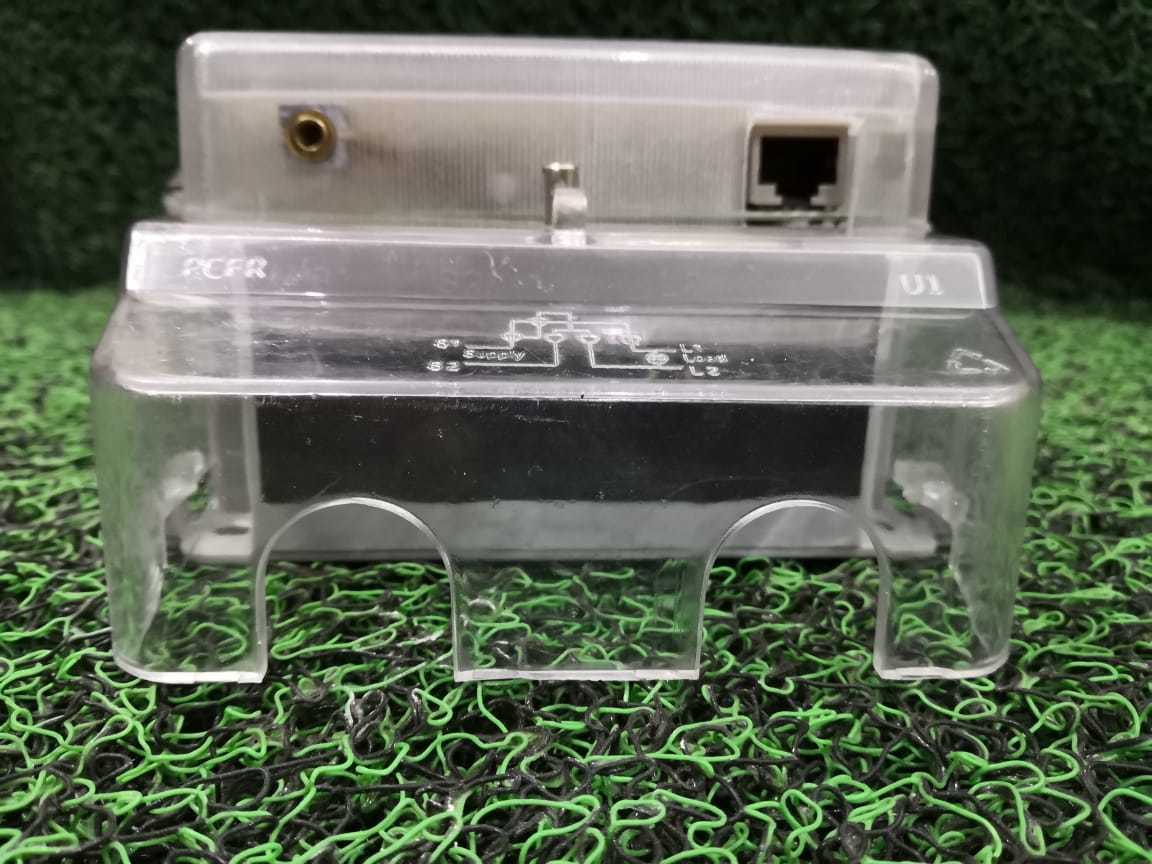

Single Phase Dual Source Prepaid Energy Meter
1500.00 - 4500.00 INR/Piece
Product Details:
- Usage Industrial
- Color Transparent
- Product Type Energy Meter
- Material Electric
- Power Supply Electric
- Click to View more
X
Single Phase Dual Source Prepaid Energy Meter Price And Quantity
- 1500.00 - 4500.00 INR/Piece
- 10 Piece
Single Phase Dual Source Prepaid Energy Meter Product Specifications
- Electric
- Transparent
- Industrial
- Energy Meter
- Electric
Single Phase Dual Source Prepaid Energy Meter Trade Information
- Cash Advance (CA), Cash in Advance (CID)
- 5000 Piece Per Month
- 1 Week
- Yes
- Sample costs shipping and taxes has to be paid by the buyer
- Western Europe, Central America, Middle East, South America, Asia, Eastern Europe, North America, Australia, Africa
- All India
Product Description
Specification
Phase | Single |
Brand | PES ELECTRICAL |
Usage/Application | Commercial |
Type | Digital |
Country of Origin | Made in India |
Product Specifications
- Measure Standard - IS: 13779,
- Dimension (L x W x H) -225 x 175 x 85 (mm)
- Weight (kg)- 2 kg
- Starting current- 20mA
- Accuracy class- Active: class1.0
- Measure parameter-KWH; KW MD, Kvah, Kva
- Other functions- Measure AC Main Power and DG supply Configure to Prepaid and Postpaid
- Meter type- 3 Phase; 4 Wire system
- Rating current/voltage- 10-60 A, 3x240v/ 415v
- Meter impulse- 1000 imp/kWh
- Environment Temperature -Operating temperature range: -100C +600C
- Power consumption- V Circuit < 2W/10VA,I circuit <0.5VA per phase
- Power Factor- 0 lag-unity-0 lead
- Voltage & Frequency range- 3x240v/ 415v (-40% to +20%) at 50 Hz (5%)
- Short over current -30 Imax
- Storage and transport temperature range: -400C +800C
- Humidity Relative Humidity: Up to 95% non condensing
- Material -Engineering plastic (Polycarbonate
- Relay Type -Three Phase integrated relay for Load control
