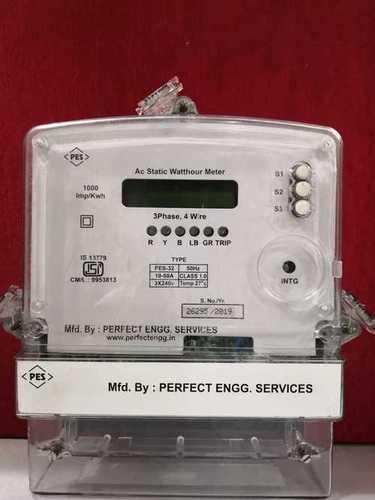

Three Phase Dual Source KWH Meters
Product Details:
-
Product Type
KWH Meters
-
Measuring Voltage Range
230 Volt (v)
-
Operating Temperature
27 Celsius (oC)
-
Color
Transparent
-
Dimension (L*W*H)
225mm(H)x175mm(W)x76mm(D) Millimeter (mm)
-
Click to View more
Three Phase Dual Source KWH Meters Price And Quantity
-
10 Piece
-
4000 INR/Piece
Three Phase Dual Source KWH Meters Product Specifications
-
27 Celsius (oC)
-
230 Volt (v)
-
225mm(H)x175mm(W)x76mm(D) Millimeter (mm)
-
Transparent
-
KWH Meters
Three Phase Dual Source KWH Meters Trade Information
-
Telegraphic Transfer (T/T) Cash in Advance (CID) Cash Advance (CA)
-
500 Piece Per Week
-
1 Week
-
Yes
-
Sample costs shipping and taxes has to be paid by the buyer
-
Western Europe Australia Middle East South America Asia Central America Eastern Europe North America Africa
-
All India
Product Description
Specification
Phase | Three |
Brand | PES ELECTRICAL |
Usage/Application | Commercial |
Type | Digital |
Product Specifications
- Measure Standard - IS: 13779,
- Dimension (L x W x H) -225 x 175 x 85 (mm)
- Weight (kg)- 2 kg
- Starting current- 20mA
- Accuracy class- Active: class1.0
- Measure parameter-KWH; KW MD, Kvah, Kva
- Other functions- Measure AC Main Power and DG supply Configure to Prepaid and Postpaid
- Meter type- 3 Phase; 4 Wire system
- Rating current/voltage- 10-60 A, 3x240v/ 415v
- Meter impulse- 1000 imp/kWh
- Environment Temperature -Operating temperature range: -100C +600C
- Power consumption- V Circuit < 2W/10VA,I circuit <0.5VA per phase
- Power Factor- 0 lag-unity-0 lead
- Voltage & Frequency range- 3x240v/ 415v (-40% to +20%) at 50 Hz (5%)
- Short over current -30 Imax
- Storage and transport temperature range: -400C +800C
- Humidity Relative Humidity: Up to 95% non condensing
- Material -Engineering plastic (Polycarbonate
- Relay Type -Three Phase integrated relay for Load control
