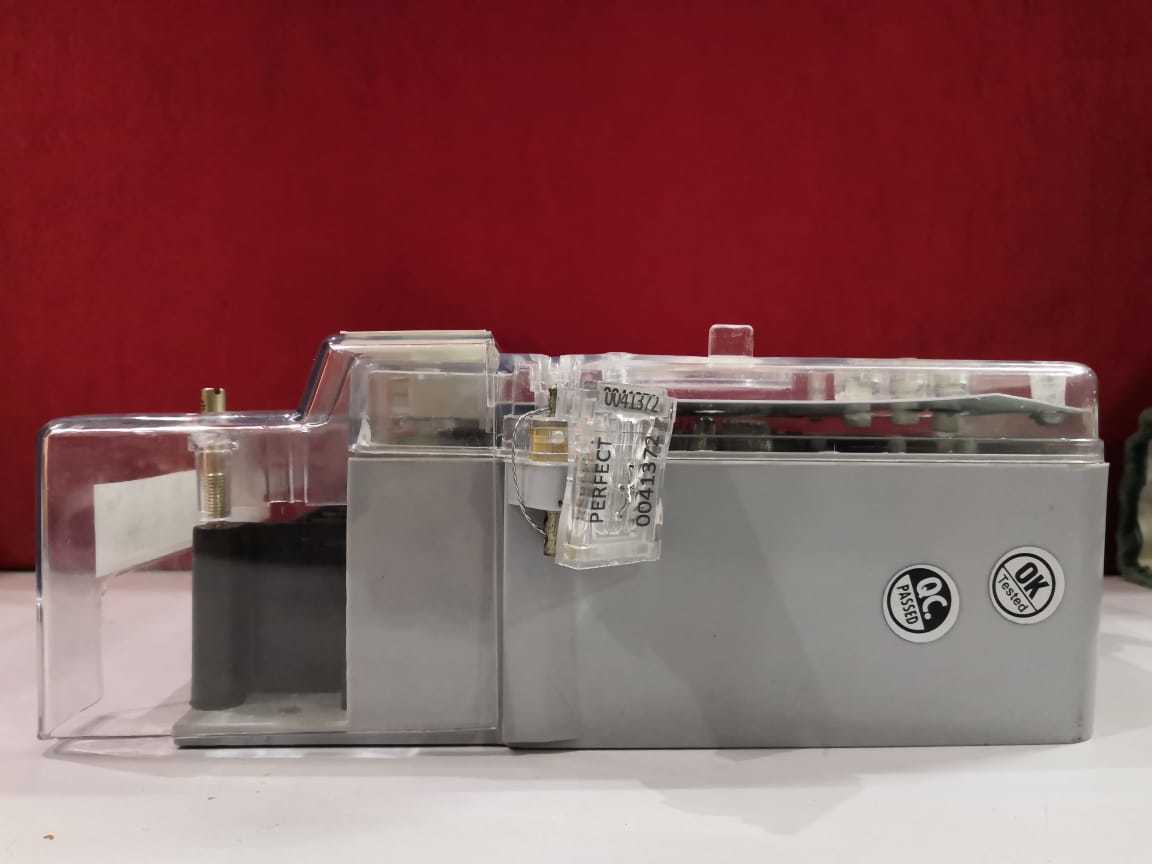

Three Phase Single Source KWH Meters
3700 INR/Piece
Product Details:
- Product Type KWH Meters
- Measuring Voltage Range 240 Volt (v)
- Operating Temperature 10 - 50 Celsius (oC)
- Frequency (MHz) 50 Hertz (HZ)
- Color Transparent
- Click to View more
X
Three Phase Single Source KWH Meters Price And Quantity
- 3700 INR/Piece
- 10 Piece
Three Phase Single Source KWH Meters Product Specifications
- 240 Volt (v)
- 50 Hertz (HZ)
- Transparent
- 10 - 50 Celsius (oC)
- KWH Meters
Three Phase Single Source KWH Meters Trade Information
- Telegraphic Transfer (T/T) Cash in Advance (CID) Cheque Cash Advance (CA)
- 500 Piece Per Week
- 1 Week
- Yes
- Sample costs shipping and taxes has to be paid by the buyer
- Australia North America Eastern Europe Western Europe Central America Middle East South America Asia Africa
- All India
Product Description
We have been serving our respected clients since 2016 by manufacturing and supplying excellent quality Three Phase Single Source KWH Meters. It is manufactured using high quality materials that we procure from reliable sources. Moreover, the whole manufacturing process is presided by a team of quality analysts to make sure that these meters comply with international quality standards. Three Phase Single Source KWH Meters are properly checked on well defined parameters prior to dispatch. Also, clients can avail these meters at cost effective price.
Features:
- Accurate calibration
- Compact design
- Long working life
Specification
Phase | Three |
Brand | PES ELECTRICAL |
Usage/Application | Commercial |
Type | Digital |
Product Specifications
- Measure Standard - IS: 13779,
- Dimension (L x W x H) -225 x 175 x 85 (mm)
- Weight (kg)- 2 kg
- Starting current- 20mA
- Accuracy class- Active: class1.0
- Measure parameter-KWH; KW MD, Kvah, Kva
- Other functions- Measure AC Main Power and DG supply Configure to Prepaid and Postpaid
- Meter type- 3 Phase; 4 Wire system
- Rating current/voltage- 10-60 A, 3x240v/ 415v
- Meter impulse- 1000 imp/kWh
- Environment Temperature -Operating temperature range: -100C +600C
- Power consumption- V Circuit < 2W/10VA,I circuit <0.5VA per phase
- Power Factor- 0 lag-unity-0 lead
- Voltage & Frequency range- 3x240v/ 415v (-40% to +20%) at 50 Hz (5%)
- Short over current -30 Imax
- Storage and transport temperature range: -400C +800C
- Humidity Relative Humidity: Up to 95% non condensing
- Material -Engineering plastic (Polycarbonate
- Relay Type -Three Phase integrated relay for Load control
