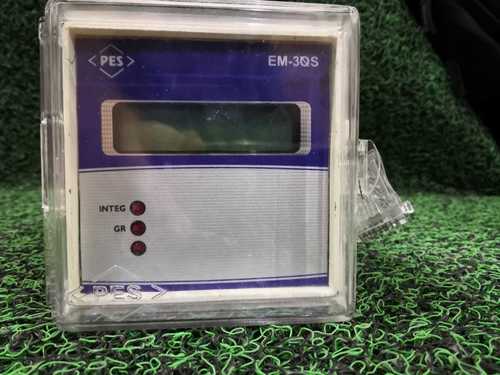

Three Phase Dual Source Multifuction Meter

Product Description

Ever since our inception in 2016, we are actively indulged in manufacturing and supplying Three Phase Dual Source Multifunction Meter. We are backed by a team of adroit professionals who guide and supervise workers at every stage of production to ensure full customer satisfaction. This meter is duly checked on well defined quality parameters by a special team of quality inspectors prior to final dispatch. Three Phase Dual Source Multifunction Meter can be availed in several models and technical specifications as per requirements and that too at reasonable rates.

Features:

• Low power dissipation
• Accurate and precise reading
• Long lasting service life

Specification

Product Specifications

• Measure Standard - IS: 13779,
• Dimension (L x W x H) -225 x 175 x 85 (mm)
• Weight (kg)- 2 kg
• Starting current- 20mA
• Accuracy class- Active: class1.0
• Measure parameter-KWH; KW MD, Kvah, Kva
• Other functions-  Measure AC Main Power and DG supply Configure to Prepaid and Postpaid
• Meter type- 3 Phase; 4 Wire system
• Rating current/voltage- 10-60 A, 3x240v/ 415v
• Meter impulse- 1000 imp/kWh
• Environment Temperature -Operating temperature range: -100C +600C
• Power consumption- V Circuit < 2W/10VA,I circuit <0.5VA per phase
• Power Factor- 0 lag-unity-0 lead
• Voltage & Frequency range- 3x240v/ 415v (-40% to +20%) at 50 Hz (5%)
• Short over current -30 Imax
• Storage and transport temperature range: -400C +800C
• Humidity Relative Humidity: Up to 95% non condensing
• Material -Engineering plastic (Polycarbonate
• Relay Type -Three Phase integrated relay for Load control
