Product Description

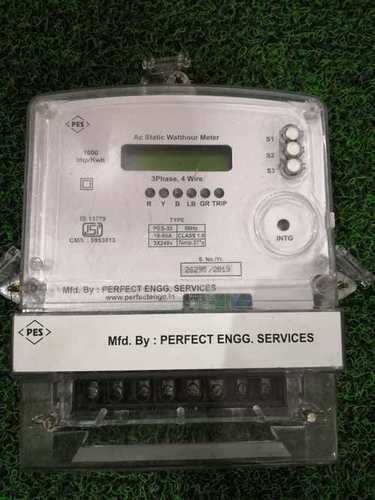

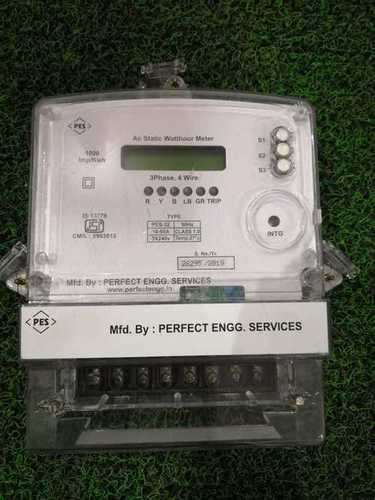

Based in Faridabad, Haryana, we are a 2016 established company actively indulged in manufacturing and supplying excellent quality Three Phase Single Source Prepaid Meter. It is completely microcontroller based thus provides effective solution to the electrical service providers. Some common application areas of this Three Phase Single Source Prepaid Meter are shopping malls, commercial complexes, residential layouts, employee quarters, among others.
Features:
- User friendly solution
- Direct current measurement
- Compact wall mounting design
Specification
Phase | Three |
Brand | PES ELECTRICAL |
Usage/Application | Commercial |
Type | Digital |
Product Specifications
- Measure Standard - IS: 13779,
- Dimension (L x W x H) -225 x 175 x 85 (mm)
- Weight (kg)- 2 kg
- Starting current- 20mA
- Accuracy class- Active: class1.0
- Measure parameter-KWH; KW MD, Kvah, Kva
- Other functions- Measure AC Main Power and DG supply Configure to Prepaid and Postpaid
- Meter type- 3 Phase; 4 Wire system
- Rating current/voltage- 10-60 A, 3x240v/ 415v
- Meter impulse- 1000 imp/kWh
- Environment Temperature -Operating temperature range: -100C +600C
- Power consumption- V Circuit < 2W/10VA,I circuit <0.5VA per phase
- Power Factor- 0 lag-unity-0 lead
- Voltage & Frequency range- 3x240v/ 415v (-40% to +20%) at 50 Hz (5%)
- Short over current -30 Imax
- Storage and transport temperature range: -400C +800C
- Humidity Relative Humidity: Up to 95% non condensing
- Material -Engineering plastic (Polycarbonate
- Relay Type -Three Phase integrated relay for Load control
